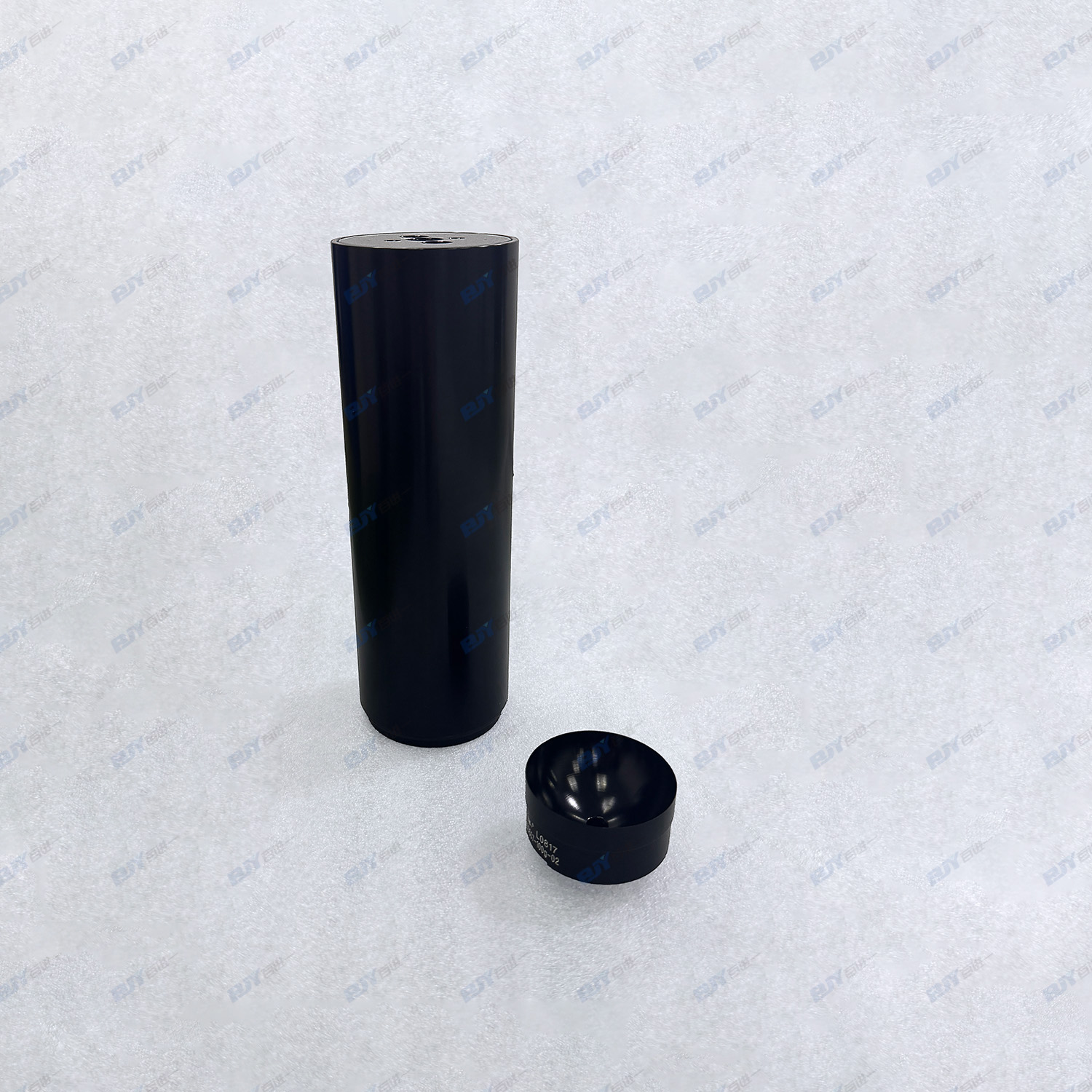

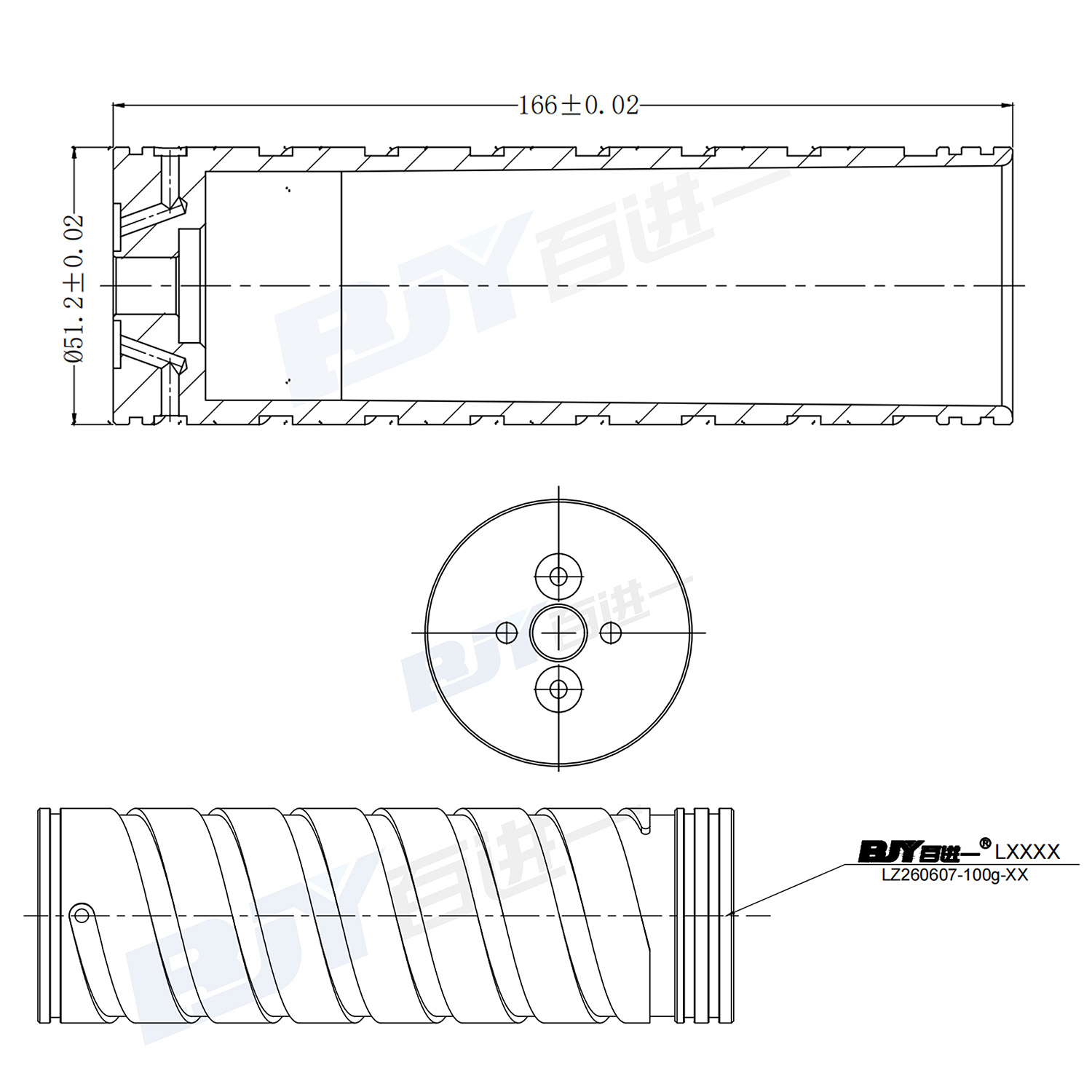

BJY 51.2*166 Take-out Plate
Material selection has a direct impact on the performance of the take-out plate.
BJY uses imported 6061A aluminum alloy for the plate, taking advantage of the material's good thermal conductivity to help release heat from preforms after ejection. For high-speed PET injection molding, stable cooling helps reduce temperature fluctuations and provides more consistent preform conditions for subsequent production processes.
In addition to the material, the internal cooling structure of the plate is also designed according to the requirements of the production process.

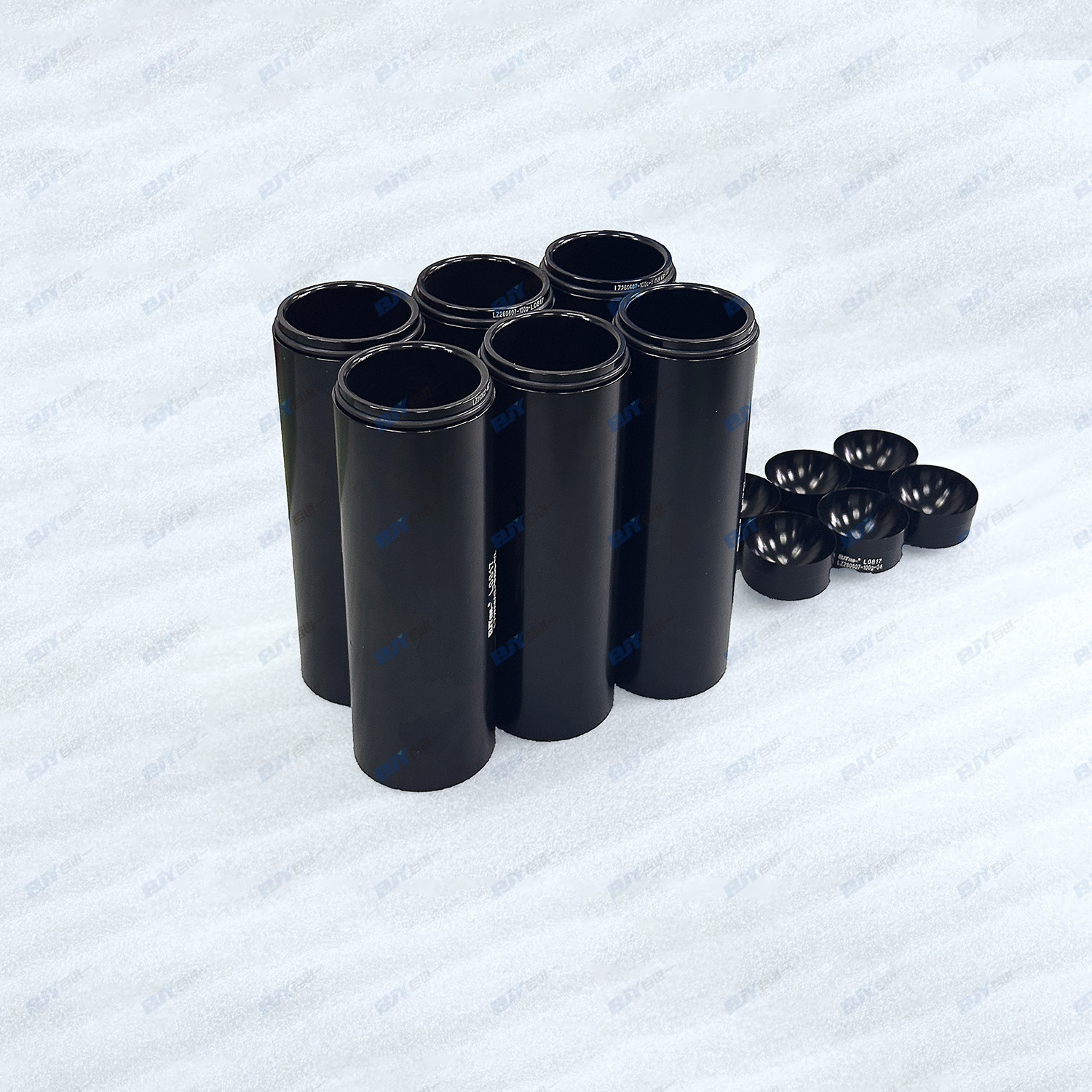

The water-cooling structure allows the cooling medium to circulate inside the plate, providing continuous cooling for the preform. During continuous production, stable cooling conditions help reduce local temperature differences and minimize quality fluctuations caused by uneven cooling.

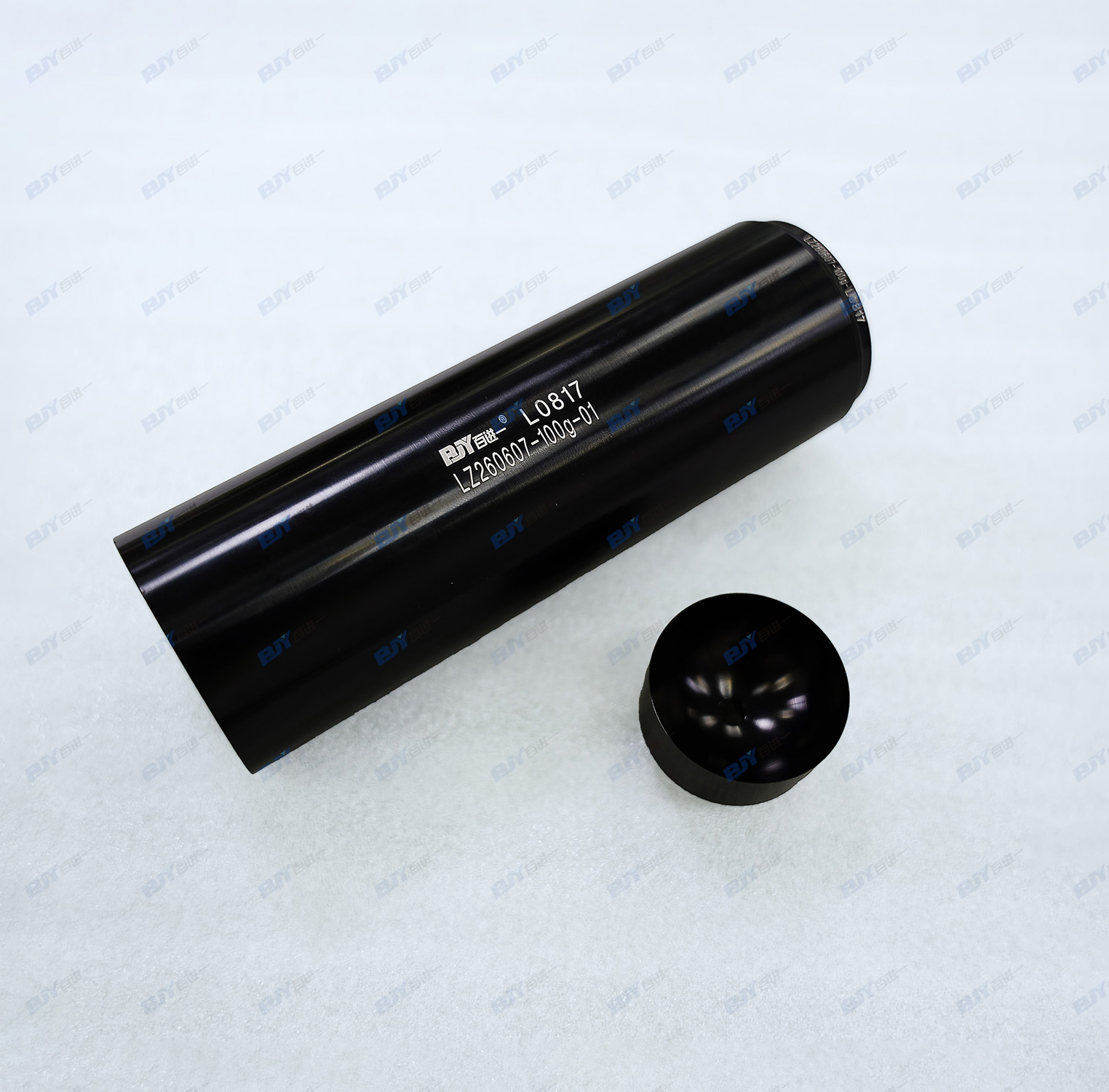

Vacuum stability during the take-out process is another important factor affecting equipment operation.
BJY pays attention to the machining and inspection of vacuum ports and connection areas to ensure good fit and sealing between the plate and the take-out system. Stable vacuum suction helps the robot reliably pick up preforms and reduces the risk of dropped preforms caused by unstable suction during high-speed operation, helping maintain production continuity.

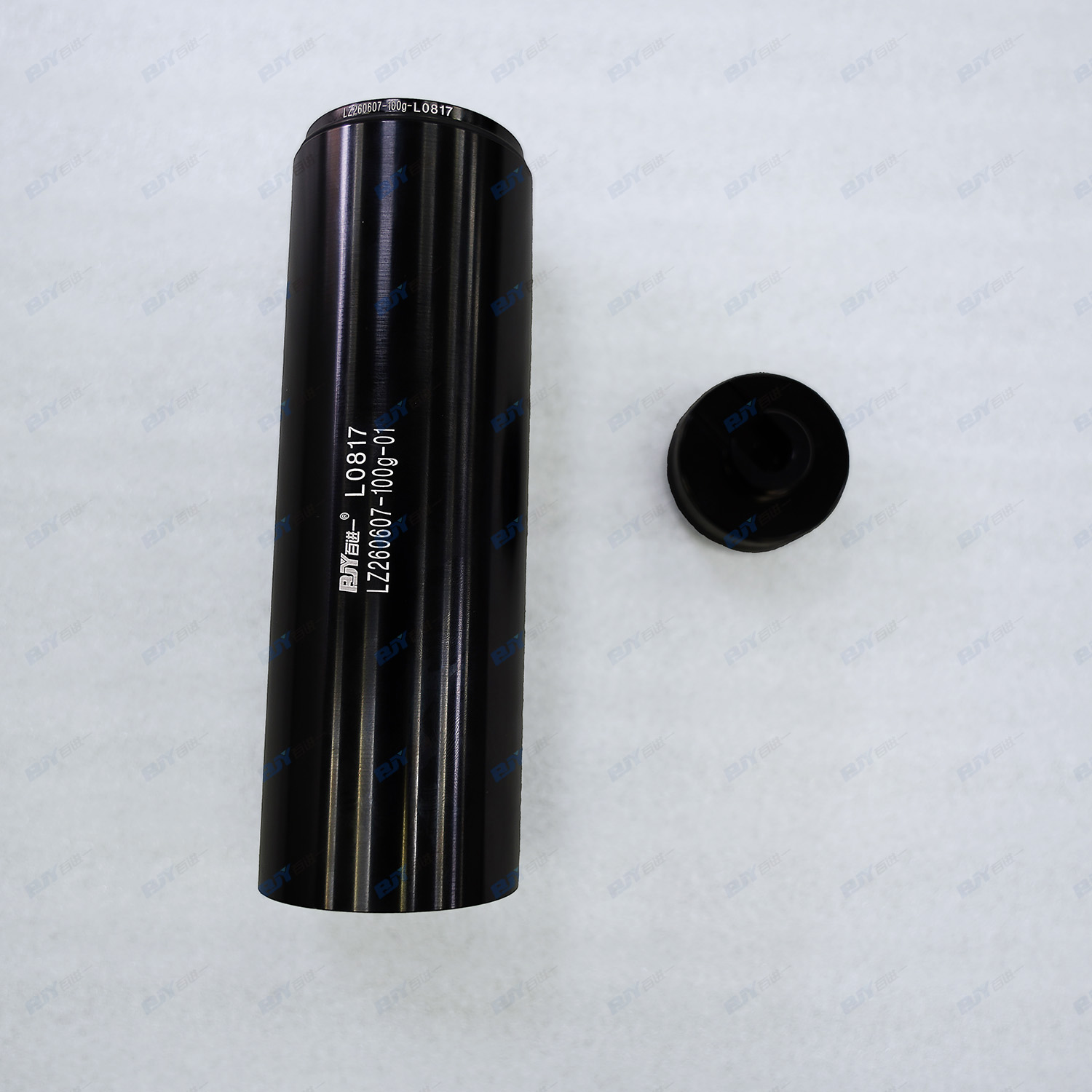

During manufacturing, BJY focuses on machining quality and component fit.
The take-out plate is manufactured using CNC machining for key structural areas, followed by inspection of relevant components to ensure they meet equipment requirements. For PET injection molding plants, consistent component quality can reduce unnecessary adjustments during installation and setup and help maintain stable equipment operation over time.

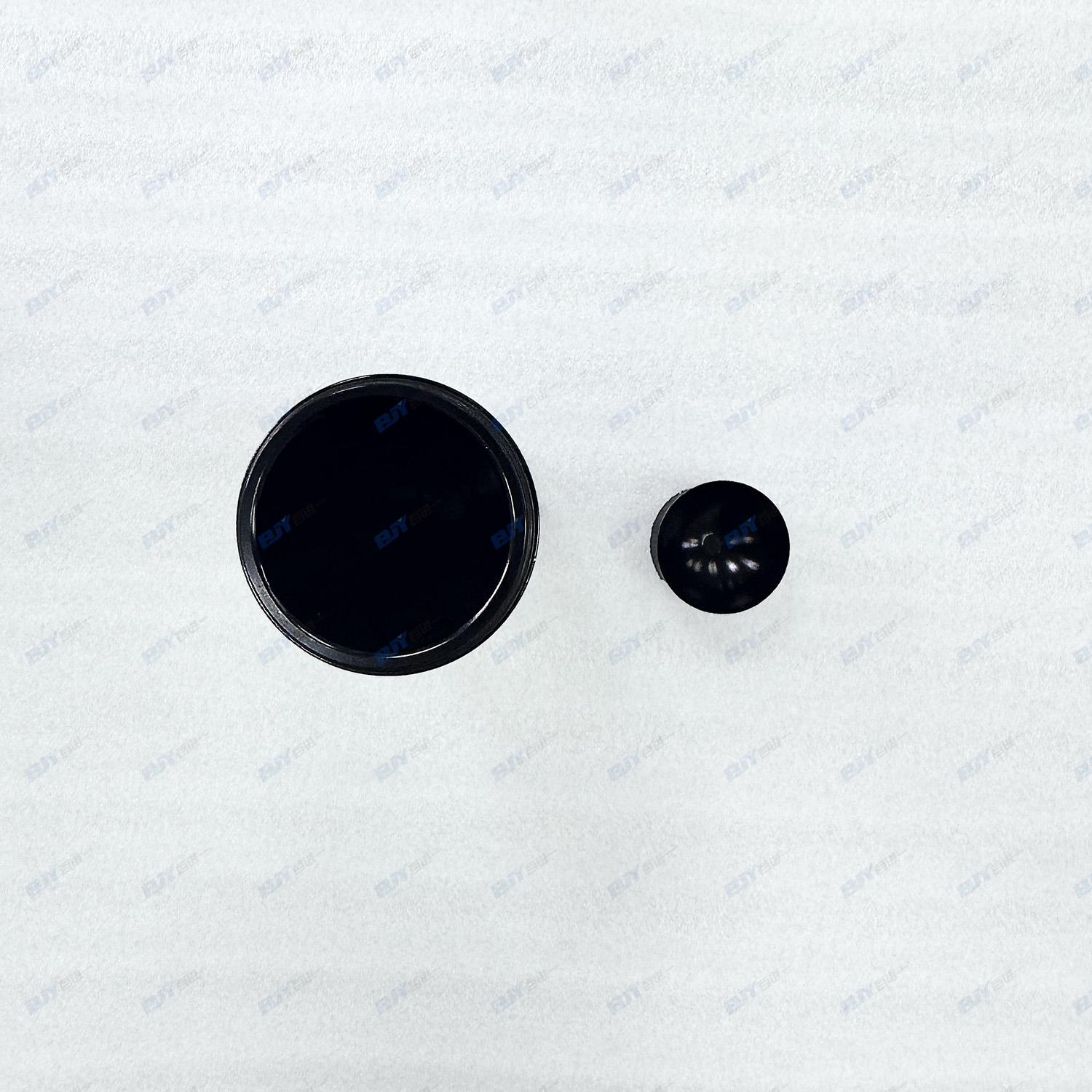

The BJY 51.2×166 Take-out Plate is mainly used for PET preform take-out and post-mold cooling.
Through appropriate material selection, cooling design, and machining processes, BJY provides reliable components for PET injection molding systems, helping customers maintain a stable production flow and meet the requirements of high-speed, continuous production environments.
Stable cooling and reliable take-out — BJY's response to the practical needs of PET injection molding.
