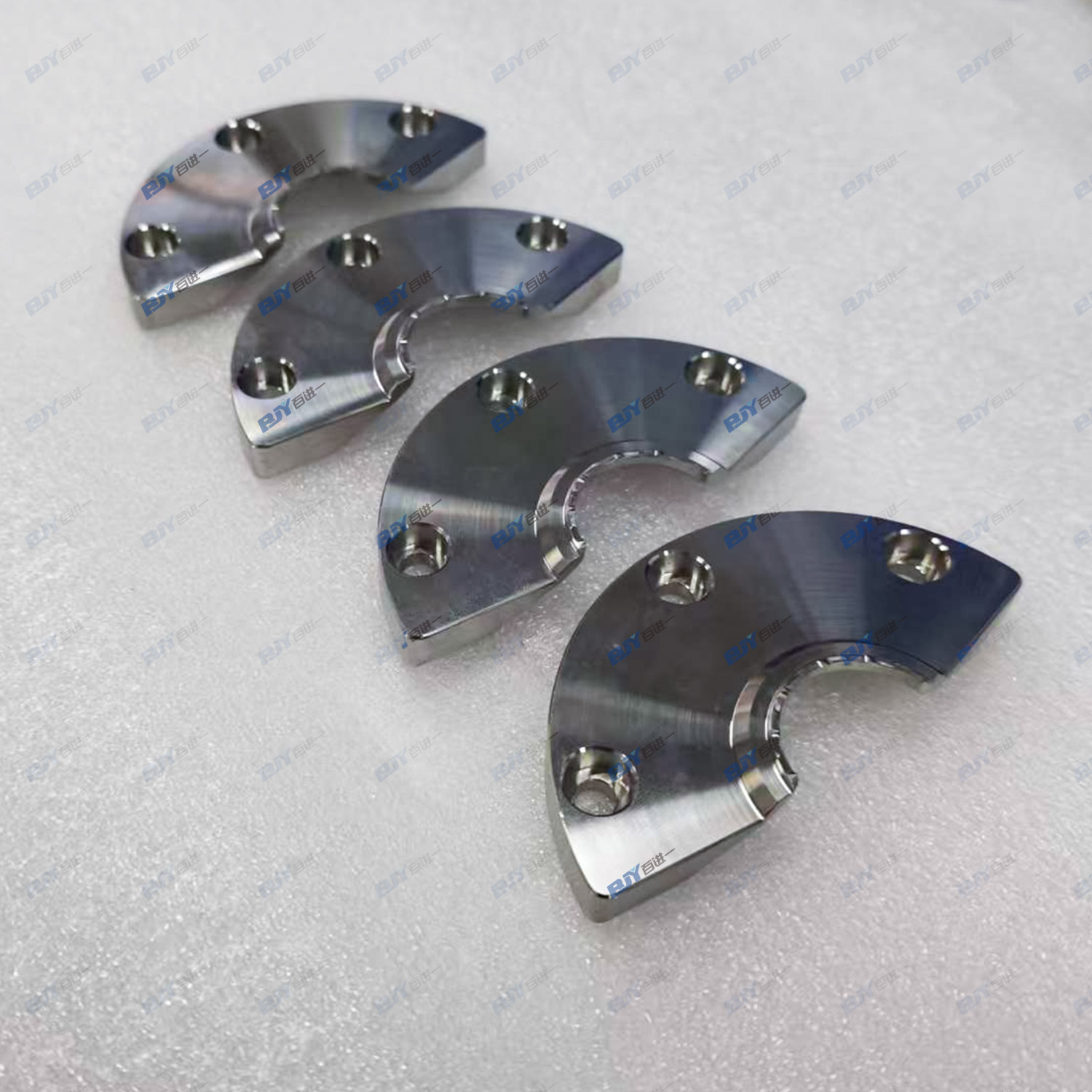

BJY Anti-Rotation Blade for Krones
When a bottle starts rotating during production, it can lead to a series of problems.

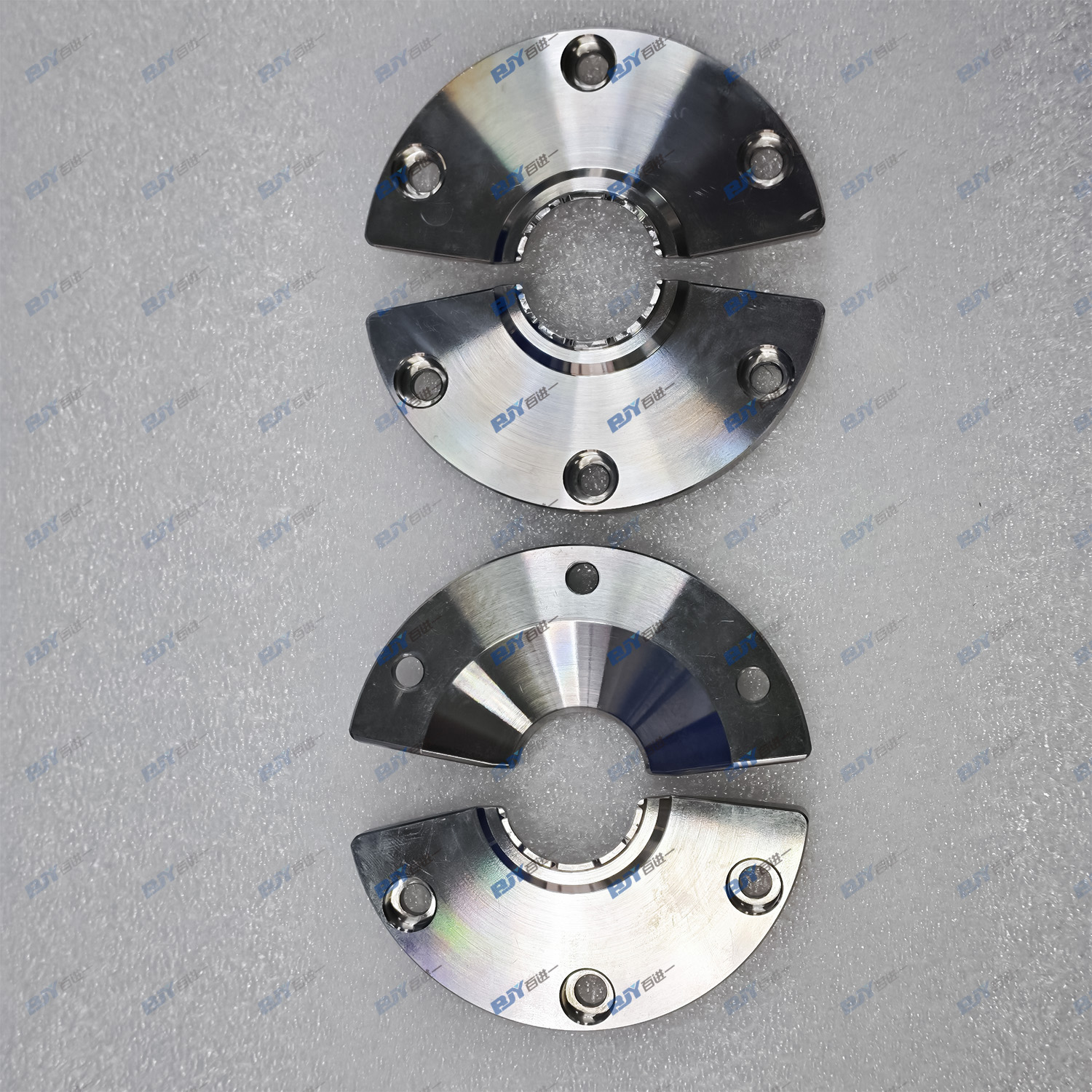

Labeling and capping may be affected, as well as subsequent packaging and transportation. One possible cause is a worn 84×4.2mm anti‑rotation blade.
Although the anti‑rotation blade is only a small component of Krones equipment, it plays an important role in keeping the Preform securely in position.
If the blade cannot hold the preform properly, the preform may rotate under high‑pressure air during the forming process. This is why BJY pays close attention to the dimensions and machining accuracy of the 84×4.2mm blade.
We choose high‑quality mold steel for a simple reason: we want the material to remain stable during long‑term use.
There are certainly lower‑cost blades available on the market, but if the material and machining quality are inconsistent, more frequent replacement can add to maintenance work.

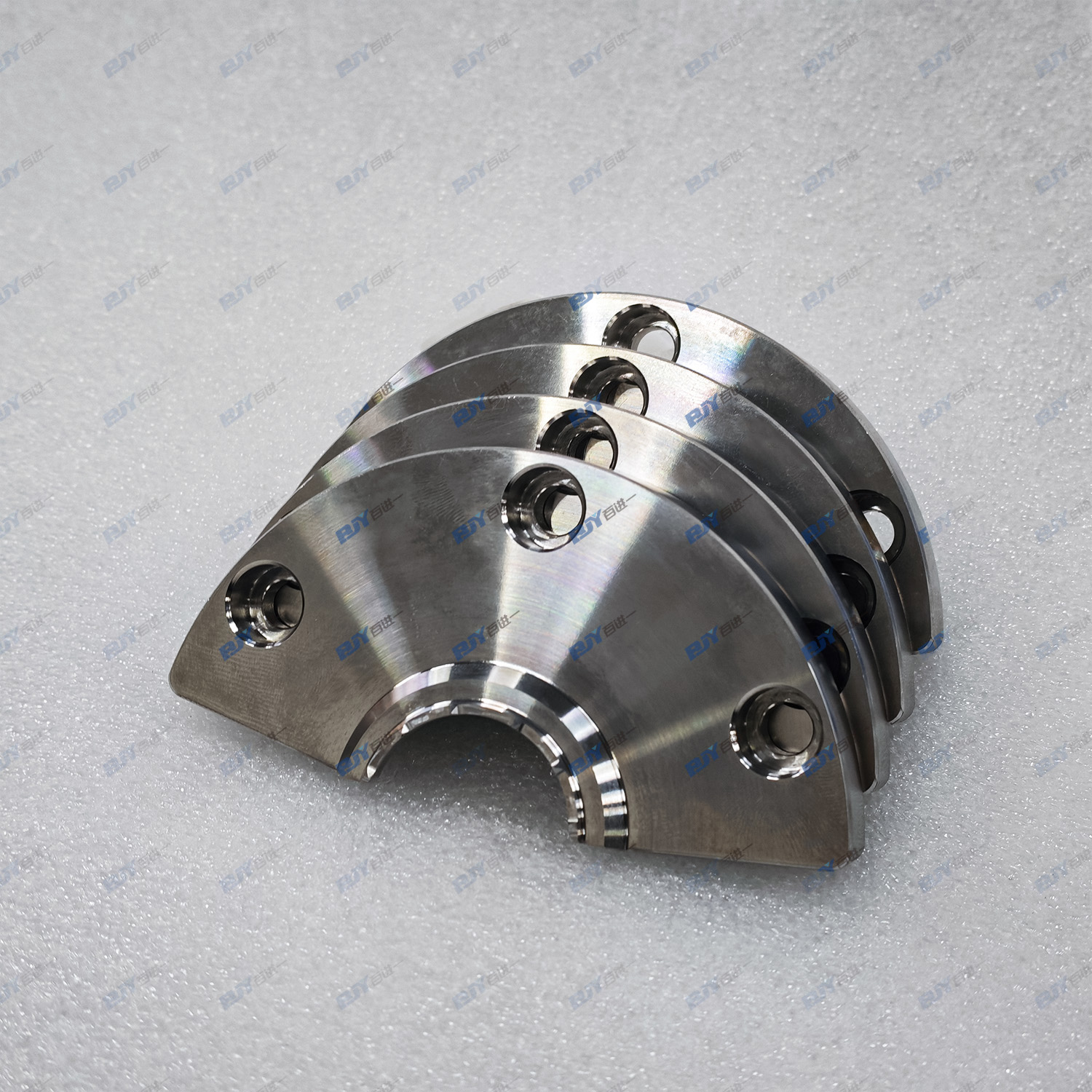

BJY anti‑rotation blades undergo vacuum heat treatment, with hardness controlled at HRC 52‑54 to achieve a good balance between wear resistance and toughness.

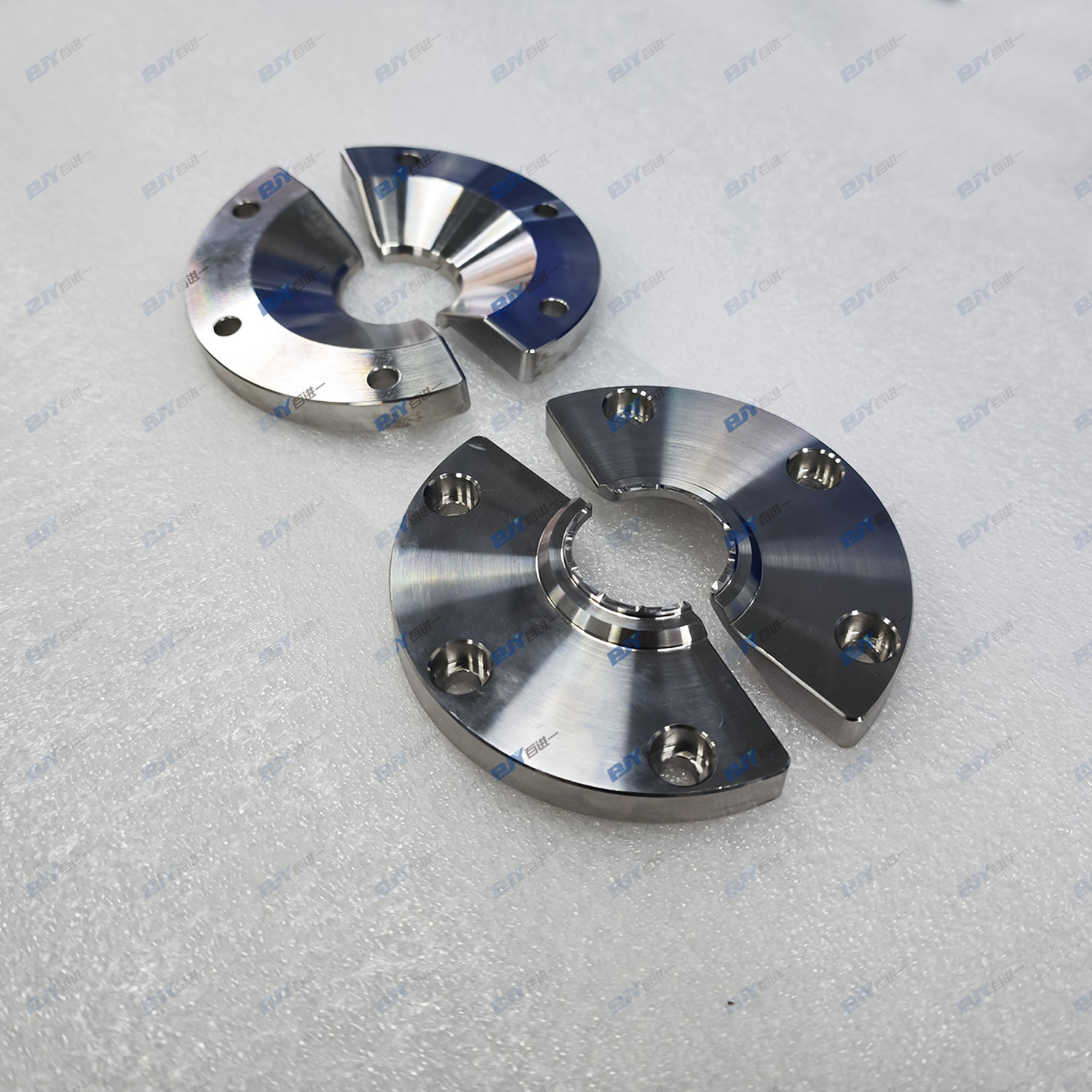

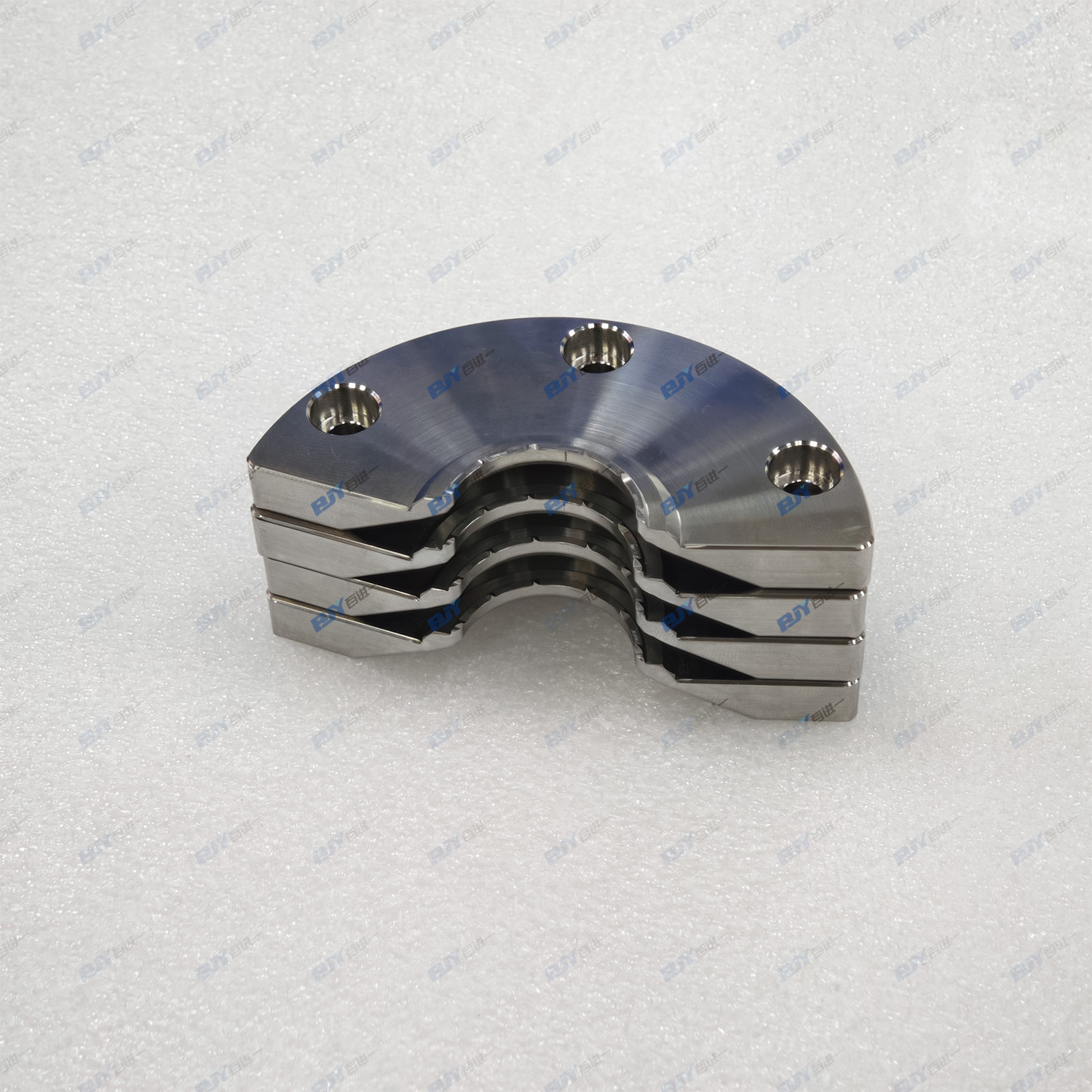

The 84mm length and 4.2mm thickness are precision machined, with dimensional tolerances controlled within ±0.01mm. Stable dimensions make installation easier and reduce the need for repeated adjustments. For us, a component should not only fit into place, but also perform reliably after installation.
From a procurement perspective, a reasonable replacement cycle means less frequent replenishment of spare parts and less routine purchasing work.
For technicians, however, the more important concern is the stability of the equipment during production. When the anti‑rotation system works properly, engineers do not have to spend unnecessary time tracking down small and difficult‑to‑identify problems on the production line. BJY has more than 20 years of experience in the beverage manufacturing industry and has worked with various maintenance requirements in real production environments. The 84×4.2mm anti‑rotation blade is one of the products developed and manufactured based on this practical experience, with long‑term use in high‑speed PET production environments in mind.
BJY products are suitable for Krones equipment and related filling lines.
For production plants that care about equipment efficiency and maintenance costs, even a small anti‑rotation blade deserves careful consideration.
A small component should not become a source of problems for the entire production line. From material selection and heat treatment to precision machining, BJY maintains control throughout the manufacturing process to provide customers with more stable spare parts.
