Spare Parts for Blowing Machine
0102030405

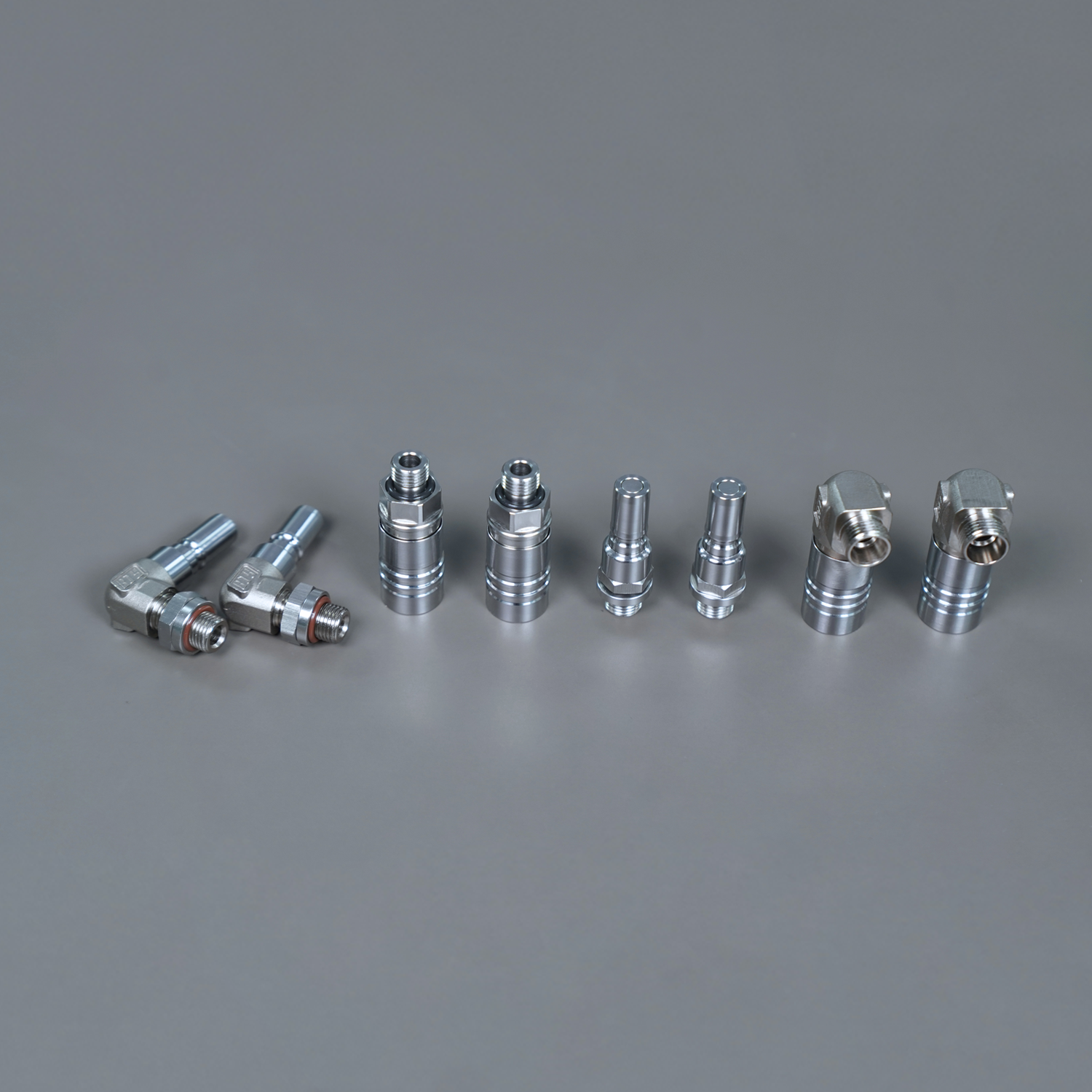

Quick-release Couplong
Product Features
|
Coupling Type |
Part No |
D |
L(mm) |
|
Male Coupling (F)
|
CPB07.01 |
G1/4 |
10 |
|
CPB07.02 |
G3/8 |
11 |
|
|
CPB07.03 |
M16X1.5 |
10 |
|
|
90°Male Coupling
|
CPB07.04 |
G1/4 |
14 |
|
CPB07.05 |
G3/8 |
14 |
|
|
CPB07.06 |
M16X1.5 |
14 |
|
|
Female Coupling (C)
|
CPB07.07 |
G1/4 |
10 |
|
CPB07.08 |
G3/8 |
11 |
|
|
CPB07.09 |
M16X1.5 |
10 |
|
|
90°Female Coupling
|
CPB07.10 |
G1/4 |
10 |
|
CPB07.11 |
G3/8 |
11 |
|
|
CPB07.12 |
M16X1.5 |
10 |
Product Description
This four-piece fitting set is designed for use on PET blow mold bases. It includes a straight male connector, 90-degree elbow male connector, curved female connector, and 90-degree elbow female connector. Each part is precision-machined to ensure a secure seal and long-term durability under high-pressure air or water conditions. Compatible with various blow molding platforms, these fittings are essential for mold cooling and pneumatic connections. Manufactured using corrosion-resistant materials, they ensure reliable performance in demanding production environments.
Product Features
1.Complete Connector Kit: Includes 4 types—straight male, 90° elbow male, curved female, and 90° elbow female.
2.Universal Fit: Compatible with most blow mold base platforms.
3.High-Pressure Resistant: Suitable for compressed air and water channels.
4.Leak-Proof Design: Tightly sealed threads and smooth joints prevent air/water leakage.
5.Material Options: Brass, stainless steel, or anodized aluminum available.
6.Thread Standard: Customizable BSP or NPT threading based on order.
7.Easy Maintenance: Replaceable and easy to install with standard tools.
Application Scope
1.Used in PET bottle blow molding systems
2.Applicable to cooling water and air inlet/outlet at mold base
3.Suitable for mold cavity base or neck mold platforms
4.Widely used in beverage, cosmetics, and household packaging lines
Minimum Order Quantity & Packaging
MOQ: 20 Pieces (Mixed Types Accepted)
We offer a flexible minimum order quantity of 20 pieces, and you may mix different connector types (e.g., straight male, elbow female) in a single order to meet your tooling needs.
Packaging:
Each fitting is individually sealed in anti-static plastic bags to ensure protection from dust and moisture during transit. Products are then grouped in sturdy export-grade cartons with protective foam, suitable for air or sea shipment.
Lead Time:
For MOQ: 5–7 working days
Bulk order (100+ pcs): 10–15 working days
Why This MOQ Is Ideal:
1.Allows small-scale testing before large production
2.Reduces upfront cost for mold base maintenance
3.Fast delivery for urgent tooling needs
